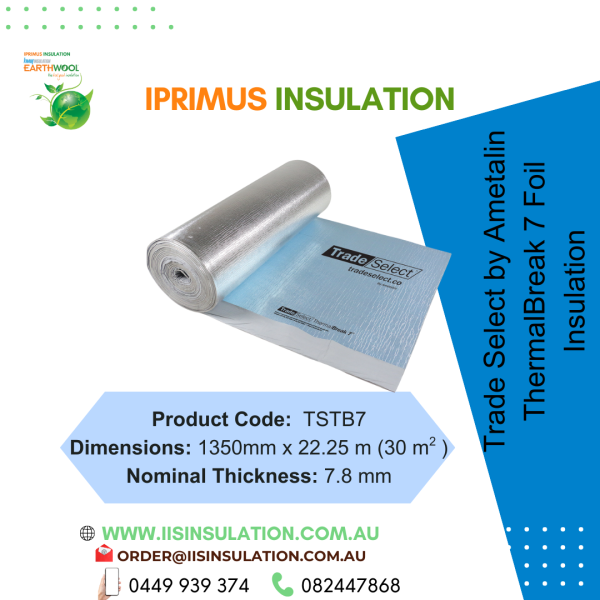

Trade Select ThermalBreak PC:TSTB7 Dimensions 1350mm x 22.25m (30 m2), Thickness: 7.8mm

0 out of 5

Benefits

Trade Select® ThermalBreak is an Extra
Heavy Duty three-in-one reflective
insulation, thermal break and Class
2 Vapour Barrier. If meets the NCC requirements for in-situ material R-value of R0.20 for a thermal break in steel framed construction. Designed to manage heat gain and heat loss, Trade Select ThermalBreak offers superior thermal performance to conventional insulation, and reduces thermal bridging and conductivity between building and elements.
Extra Heavy Duty
Group 1 Fire performance classification
R0.2 Thermal Break in-situ
Acoustic dampener
Low Flammability, suitable for all BALs in
bushfire-prone areas
Can also be used for timber frame and commercial steel frame constructions.

Downloads

Material Properties and Classifications

Trade Select® ThermalBreak® classifications in accordance with AS/NZS 4200.1:2017 and AS/NZS 4859.1:2018

Criteria	Reference	Result	Requirement
Resistance to Dry Delamination	AS/NZS 4201.1:1994	Pass	Pass
Resistance to Wet Delamination	AS/NZS 4201.2:1994	Pass	Pass
Shrinkage (Repeated wetting & drying)	AS/NZS 4201.3:1994	0.00%	< 0.5%
Material Thermal Resistance	ASTM C518	0.21 m2·K/W (R_M0.21)	Classification
Compressed Material Thermal Resistance	ASTM C518	0.20 m2·K/W (R_M0.20)
Nominal Thickness		7.8 mm
Material Thermal Conductivity	ASTM C518	0.0376 W/m·K
Material Thermal Conductance	ASTM C518	4.7 W/m2K
Electrical Conductivity	AS/NZS 4200.1:2017	Conductive	Classification
Duty	AS/NZS 4200.1:2017	Extra Heavy	Classification
Tensile Strength Machine Direction	AS 1301.448s-91	14.6 kN/m	Min 9.5 kN/m
Tensile Strength Lateral Direction	AS 1301.448s-91	13.6 kN/m	Min 6.0 kN/m
Edge Tear Machine Direction	TAPPI T 470 om-89	384 N	Min 65 N
Edge Tear Lateral Direction	TAPPI T 470 om-89	293 N	Min 65 N
Air Control	AS/NZS 4200.1:2017	Air Barrier	Classification
Emittance Value	AS/NZS 4201.5:1994	Anti-glare side: 0.05, Foil side: 0.03 Value	Value
Emittance Classification	AS/NZS 4200.1:2017	IR Reflective, IR Reflective	Classification
Emittance Category	AS/NZS 4200.1:2017	RR	Category
Vapour Control	ASTM E96	Class 2 Vapour Barrier	Class 1 to 4
Vapour Permeance	ASTM E96	0.0113 µg/N.s	Value
Water Control	AS/NZS 4201.4:1994	Water Barrier	Classification
Flammability Index	AS 1530.2-1993	Low ≤ 5	High (> 5) / Low (≤ 5)
